K13TurboPRO

Processor: Equipped with Qualcomm's fourth-generation Snapdragon 8s Gen4 mobile platform (TSMC 4nm process), using the full-core architecture of Cortex-X4 super-large core (maximum frequency 3.2GHz) + A725 large core, with 7-core Adreno GPU, Antu has broken through the 2.45 million.

Cooling system:

Gale cooling engine: Built-in 18,000 rpm intelligent variable frequency fan (13 0.1mm ultra-thin non-equidistant fins), with L-type ultra-low wind resistance air duct (3mm ultra-short design), the air volume is increased to 220% of the traditional fan, and the heat dissipation efficiency is increased by 3 times.

Passive heat dissipation module: 7000mm ² large VC soaking plate, 2000W/m · K ultra-high performance thermal conductive graphite and gel, forming an active + passive dual-cycle heat dissipation system. The temperature of the game body is controlled within 25 ° C for 1 hour at 30 ° C.

Second, screen and interactive experience

Screen parameters:

6.8-inch AMOLED flexible straight screen (1.5K resolution 2800 × 1280, 453PPI), support 120Hz refresh rate (intelligent switching), 240Hz touch sampling rate and 1600nit global peak brightness.

Hardware-grade low blue light, 3840Hz high-frequency PWM dimming, passed SGS eye protection certification, supports wet hand touch, glove mode and film adaptive adjustment.

Touch optimization: Optimized touch sampling rate for game hot areas such as "Yuan Shen" and "Game for Peace", supports 0.1mm-level touch response accuracy.

III. Battery life and charging technology

Battery configuration:

7000mAh single-cell silicon carbon negative electrode battery (typical value), using electrolyte self-healing technology, supports capacity ≥ 80% after 1830 cycles, and theoretical service life is 5 years.

80W super flash charging (54 minutes full charge), support bypass power supply function (direct power supply when charging while playing games, reduce battery heating).

Compatible with 44W public protocol fast charging and 13.5W PD input, suitable for mainstream mobile power supply.

IV. Imaging and characteristic functions

Imaging system:

Rear 50 million pixel main camera (Howei OV50D40, 1/2.88-inch sensor, f/1.8 aperture, 2-axis OIS optical image stabilization) + 2 million pixel black and white lens, support 4K video recording and movie mode.

AI Image Assistant: Integrated AI to eliminate (remove passers-by and reflections in the picture), AI to drag (sharpen the dynamic scene), AI ultra-clear pixels (enhance the image quality after enlargement and cutting).

Front 16 million pixel lens, support portrait blurring and screen fill light.

Protection performance:

IPX9/IPX8/IPX6 triple waterproof: can withstand high pressure steam rinsing at 80 ° C (8000KPa pressure, 30 seconds/surface), 1.5 meters water depth immersion for 30 minutes, and dust and anti-drop.

Crystal shield glass: passed the military anti-drop test, can withstand 2.5 meters height drop.

Other configurations:

All-round experience: stereo dual speakers (300% super volume), X-axis linear motor, infrared remote control, multi-function NFC (supports 300 + city transportation cards and access cards).

System optimization: ColorOS 15.0 deep customization, equipped with tidal engine (chip-level performance scheduling) and Shanhai communication (weak connection environment signal strength increased by 2 times).

5. Design and Specifications

Appearance Design:

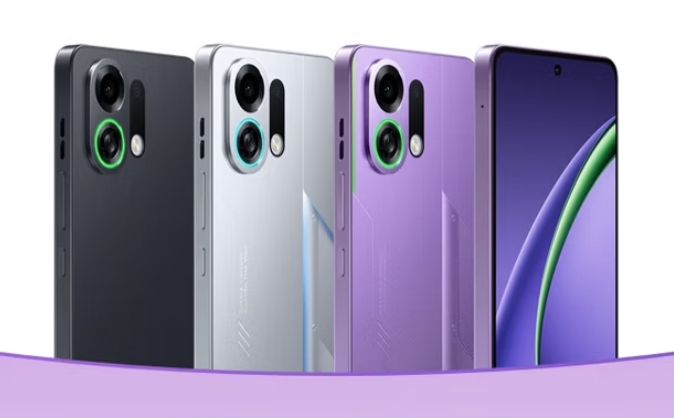

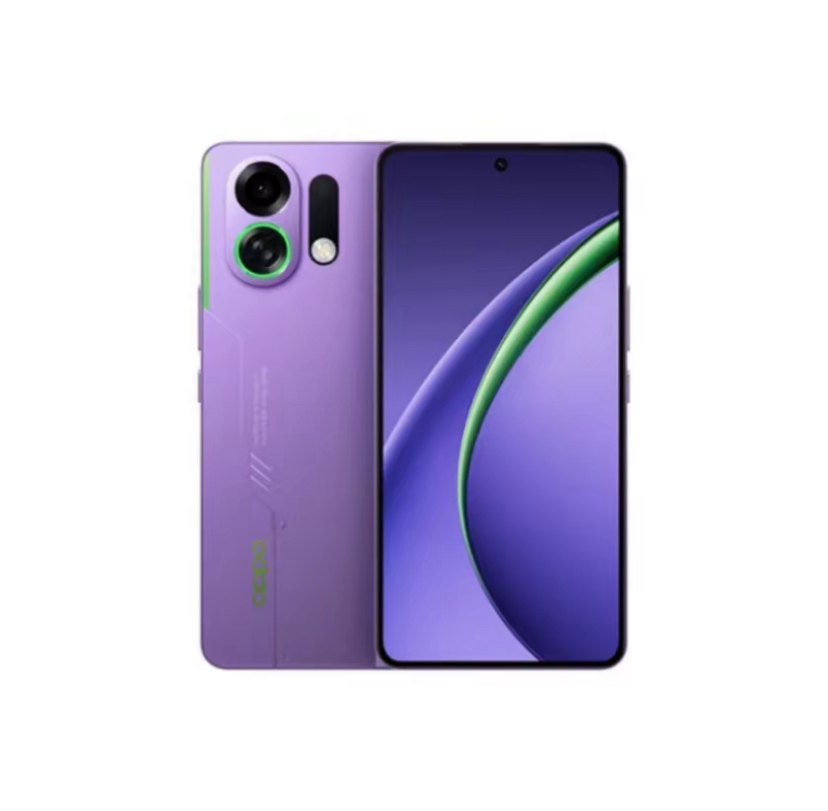

Provide three color schemes of Knight Silver, Primary Purple, and Darth Vader. It adopts crystal shield glass backplane + sky dome architecture design, and the rear wind turbine breathing light (ultraviolet energy storage and luminescence).

The fuselage size is 162.78 × 77.22 × 8.31mm, the weight is 208g, and the middle frame is made of high-strength low-temperature plastic.

Interface and network:

USB Type-C (supports OTG), Type-C headset 2-in-1 interface, dual-card dual-standby 5G (n1/n3/n5/n8/n28A/n38/n40/n41/n77/n78 band).

Support Wi-Fi 7 (802.11be) and Bluetooth 5.4, providing low-latency network connection.
